Opening Kit for swinging gates up to 2,1 m per gate (total 4,2m)


For swinging gates up to 2,1 m per gate (total 4,2m)


2 24 Vdc Operators with control unit and integrated receiver
1 Pair of photocells
1 24 Vdc Flashing light with built-in aerial
1 Key selector
2 433,92 Mhz, 2 channels transmitters
1 Warning board

In stock

520 €

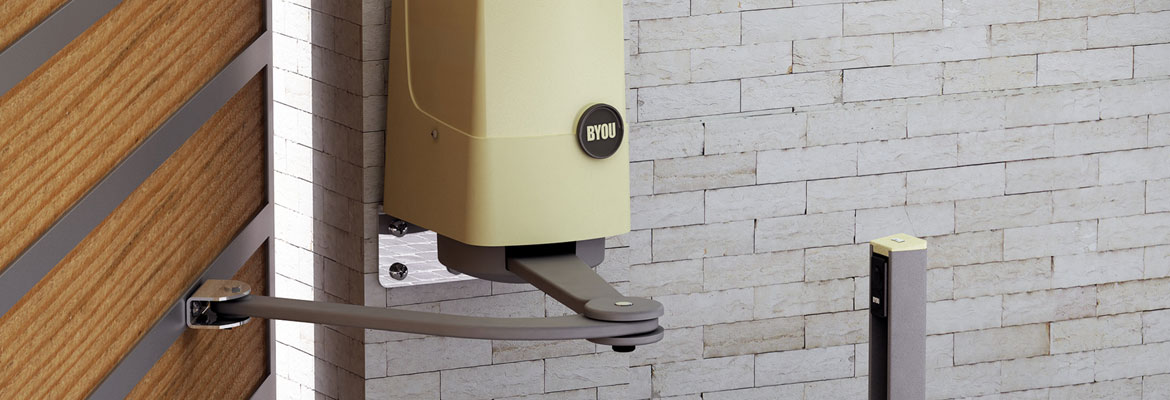

24 Vdc electromechanical operator with built-in control panel for the automation of swinging gates up to 2.1 m long.

Suitable for the automation of gates featuring large columns.

The system may be activated even in the absence of electric power, thanks to battery that can be perfectly integrated in the motor.

Anti-shear articulated arm and a compact and functional design that allows adaptation to any architectural context.

Presence of a mechanical stop on opening and an anti-crushing system with amperometric detection.

Unlocked with a key.

Instruction  Installation Guide

Power supply230 Vac
Motor supply24 Vdc
Absorbed Power75 W
Max. absorbed current0,6 A
Torque120 Nm
Opening time14”
Operation cycleintensive use
Protection levelIP 44
Operatig temp.-20°C/+70°C
Mechanical stopadjustable in opening
Integrated control unityes
Max. Length Leaf2,1 m
Weight7,9 Kg


  • C.BY
    Accessory for operation in the absence of electric power, composed of a battery charger, nickel metal hydrate batteries and support.
    140 €
  • C.BY
    Pair of columns with photocells P.BY and support.
    68 €
  • C.BY
    Pair of fixed photocells for external fitting. Design and technology to satisfy dual requirements, safety and energy saving.
    44 €
  • C.BY
    Flashing light Byou 433.92 MHz with built-in aerial. Decisive lines for a flashing light with a unique design.
    38 €
  • C.BY
    Key selector for outdoor installation.
    34 €
  • RC.BY
    2-channel- receiver for Byou transmitters. It allows to control other automations with Byou transmitters.
    90 €
  • W.BY
    Warning board.
    3 €
  • L.BY
    Control board for electric lock 12/24 Vdc.
    38 €
